Thin Metal Alternatives
While cutting aluminum sheet metal with the Zünd has become more popular, it requires use of the router and therefore additional attention from Lab staff to prepare the file and equipment before use.
Like all work to be completed on the CNC Router, jobs using this material must be submitted in advance and approved by Lab staff before machine time can be scheduled. Further, access to the Zünd router attachment is limited to hours when qualified staff is available.
In comparison to other materials, this requires more machine time, is more costly, and is more prone to encounter errors while machining, resulting in loss of both machine time and material. At the end of the semester, this loss has the potential to effect many others, impacting their ability to complete work, as well as your own.
When representing metal in scale models, please consider whether other materials and methods can be effective, instead. A small selection of examples and relevant data is shared below:

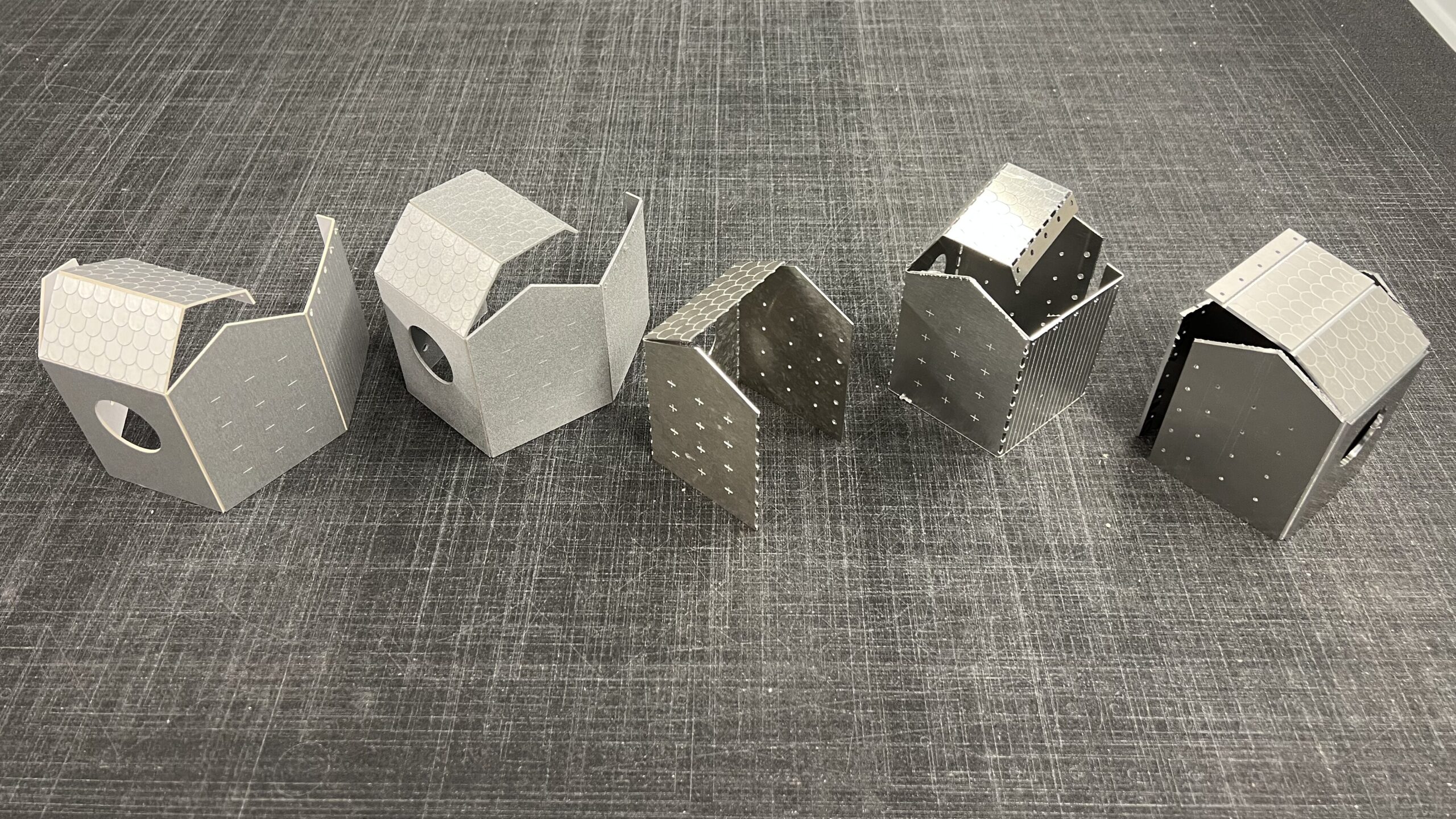

Pictured above, from left to right:
- 6061 Aluminum, Engraved
- Metallic Matboard, Scored
- Museum Board, Scored and Painted
| Material | Base Material Cost | Cutting Time | Walk-Up | Approval | Notes |
|---|---|---|---|---|---|
| Blick Crescent Metallic Matboard | $1.00 (0.01/sq in) | 3 min 9 sec | Yes | Not Required | |
| Matboard, Spray-painted | $1.00 (0.01/sq in) | 3 min 9 sec | Yes | Not Required | Painted after being scored |
| Aluminum, 0.02″ Thickness | $4.00 ($0.08/sq in) | 9 min 37 sec | No | Required | Grade 6061 only, $12 minimum sheet cost |
| Aluminum, 0.03″ Thickness | $5.00 ($0.10/sq in) | 9 min 39 sec | No | Required | Grade 6061 only, $14 minimum sheet cost |
| Aluminum, 0.09″ Thickness | $7.50 ($0.15/sq in) | 11 min 22 sec | No | Required | Grade 6061 only, $22 minimum sheet cost |
